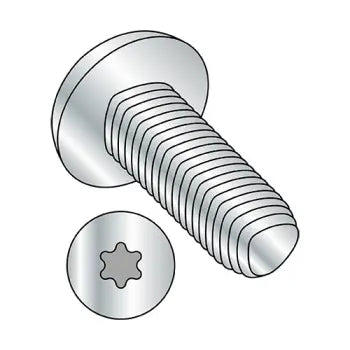

JFAST M420D7500T - M4-0.7X20 Din 7500 C E Pan 6 Lobe Recess Thread Rolling Screw Full Thread Zinc Bake Wax, Case Quantity: 700

JFAST M420D7500T - M4-0.7X20 Din 7500 C E Pan 6 Lobe Recess Thread Rolling Screw Full Thread Zinc Bake Wax, Case Quantity: 700

In Stock

  • Part Number: M420D7500T
  • Product Category: Thread Forming Screws
  • Type / Style: TFS for Metal
  • Size: M4-0.7
  • Length: 20mm
  • Head Style: Pan Head
  • Drive Style: Torx¨ / Six-Lobe
  • Head Diameter: 7.64 - 8.0
  • Head Height: 2.92 - 3.10
  • Full / Partial Thread: Full
  • Driver Size: T20
  • Material: Steel
  • Finish: Zinc
  • DIN Standard: DIN7500C
  • RoHS: On Request
  • driver_size: T20
  • head_diameter: 7.64 - 8.0
  • type_style: TFS for Metal

Length: 20
Diameter: M4
View All Specifications
$44.97 / each
/ each $44.97
Sale Sold out

Minimum:In stock

Request Bulk Quote
Technical Datasheet CAD Model (STEP)
View full details
